Lift and slide door

Lift and slide door

Slim design offering enhanced airtight performance and stunning views


  • Creates a comfortable indoor environment for the user.
  • Achieves Passive House-level insulation performance, overcoming the weakness of highly conductive aluminum.
  • Enhanced airtightness for an indoor environment with minimized fine dust and drafts.
  • U-value
    (Cardinal E366/i89 6mm)
    Max. panel size (W x H)
    94.48” x 118.11”
    Min. panel size (W x H)
    27.55” x 27.55”
    Max. weight
    661 lb
    Max. glass thickness
    1.69”
    Configurations
    XO, XOOX, XOO, OXXO, O, XOX

CONFIGURATIONS

  • XO
  • OX
  • XOOX
  • XX
  • OXO
  • XOO
  • OOX
  • OXXO
  • XXX
  • XOX
  • XXO
  • XXXX

    Performance

    Upgraded Technology for the Future
    The sleek system window maximizes insulation with an air layer between its two thin thermal breaks, while a built-in Anti-Bimetal component enables it to adapt to temperature fluctuations. The Lift Unit, calibrated to the window's load, ensures smooth and reliable operation, providing exceptional ease of use for people of all ages.

    Design

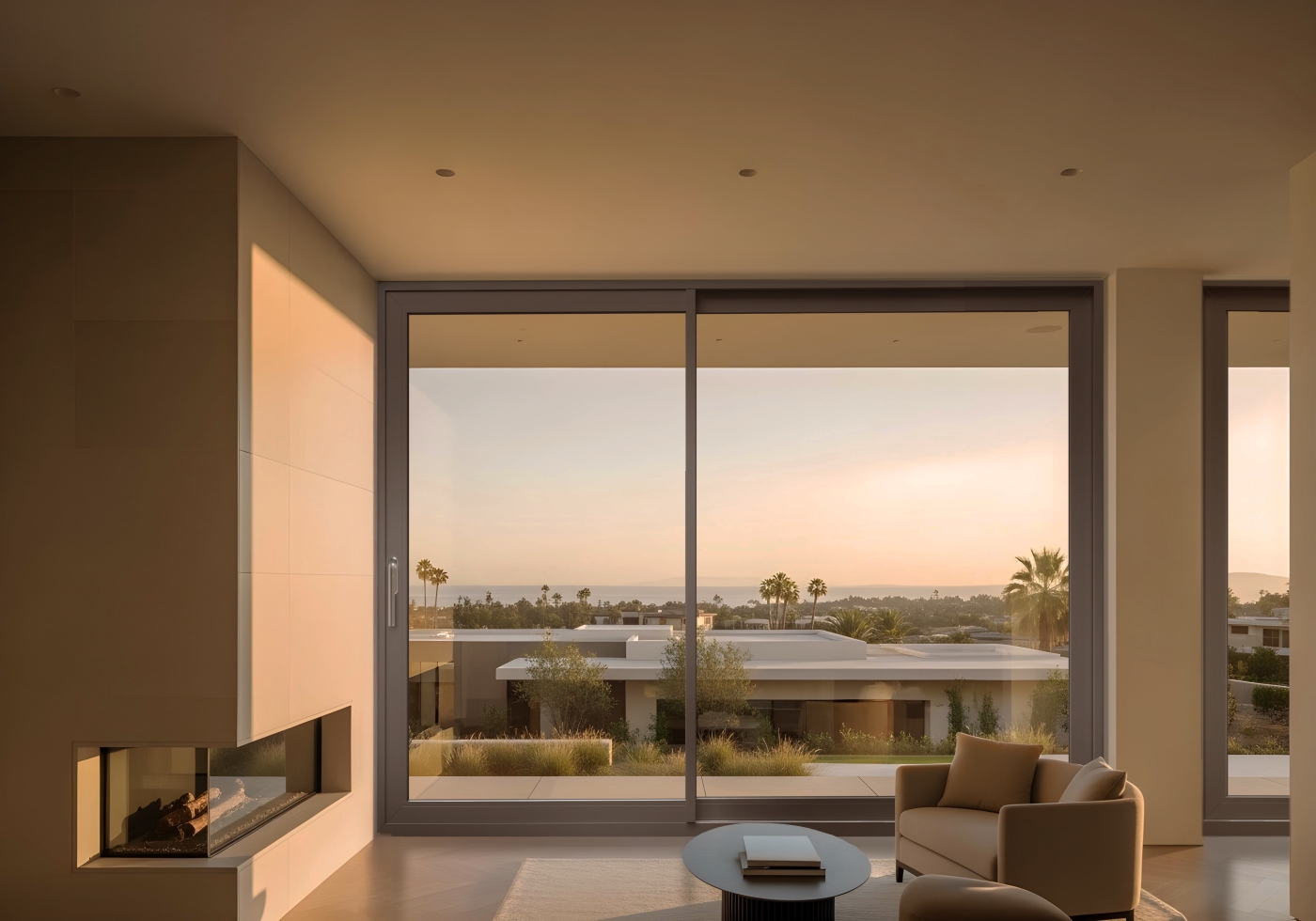

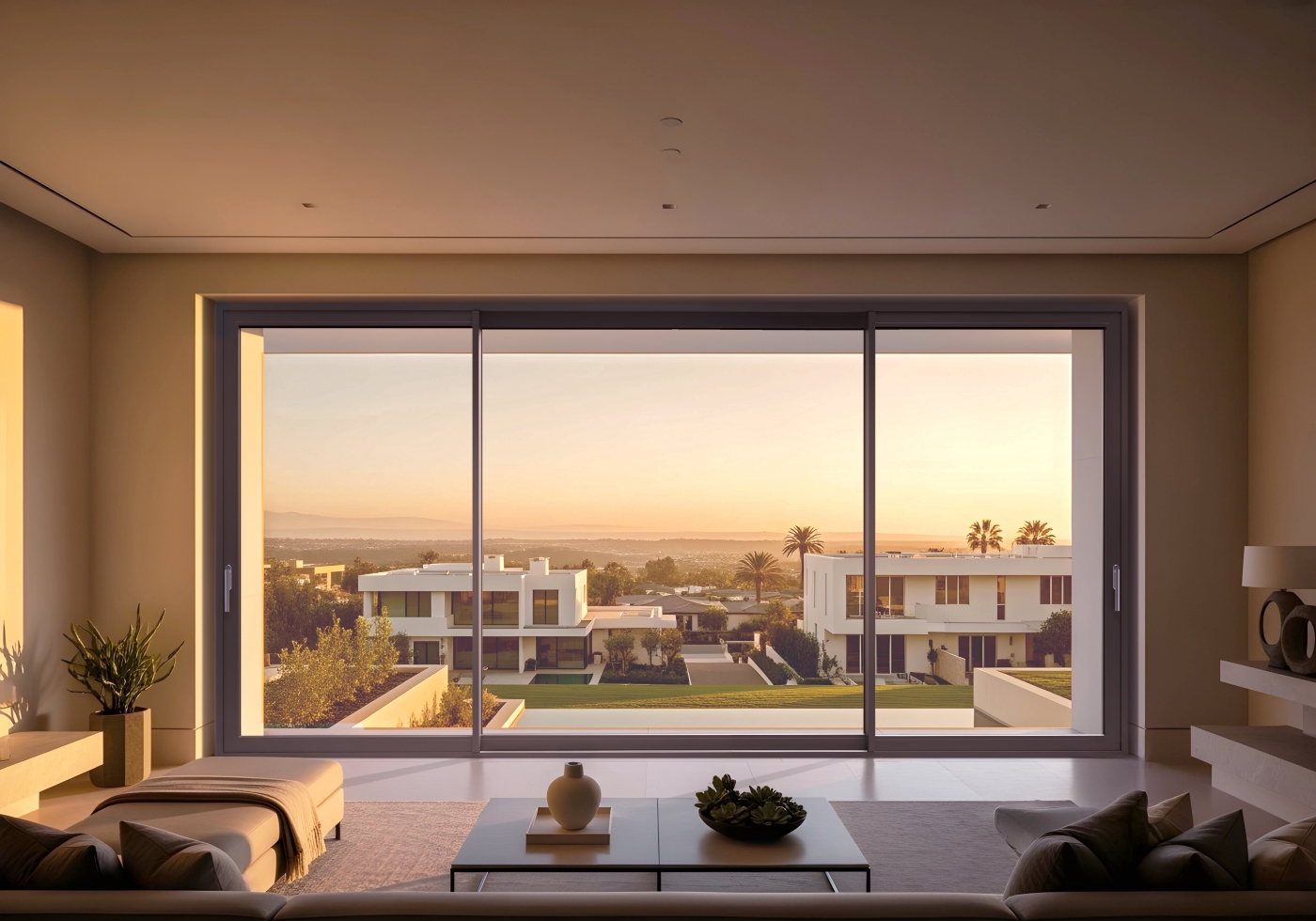

    For an Uninterrupted, Complete View
    The central frame where the windows meet is only 40mm wide, allowing you to enjoy panoramic views with minimal visual obstruction. By replacing conventional sponge-type sealing with sophisticated cover panels, we have minimized the exposure of structural elements to achieve an even cleaner and more seamless appearance. Additionally, precision custom-fitted aluminum end caps applied to the top and bottom of the vents bring distinctive luxury to the overall product finish.

    OPTIONS

    Hardware

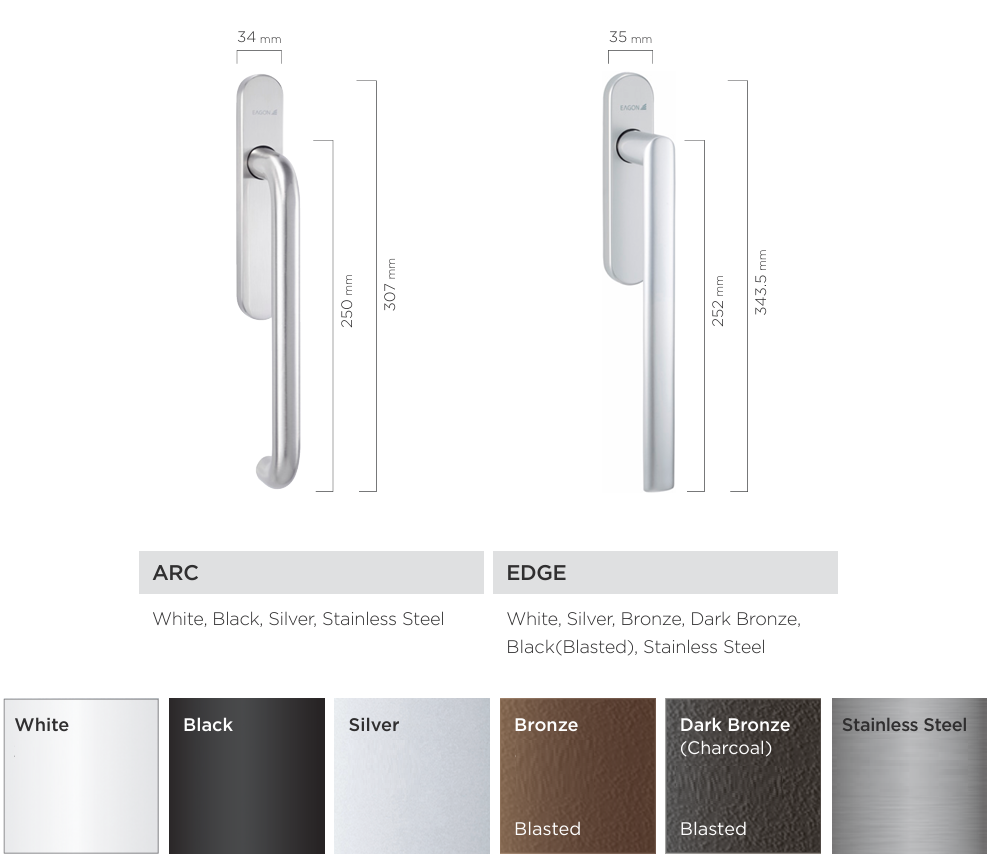

    Handle

    ESS 210 LS MS, handles are anodized to emphasize luxury and sophistication.








    LS Lift Unit (Option)



    LIFT UP: Enables effortless handle operation for heavy sashes.
    DOWN: Reduces handle kickback via the integrated handle damper.
    Application Criteria: Available for sashes weighing 130 kg or more (based on a 1500 x 2300 mm sash).




    Color

    • (SOLID) Super White

    • (SOLID) Bone White

    • (SOLID) Atrium White

    • (SOLID) Classic White

    • (SOLID) Eagon White

    • (SOLID) Light Grey

    • (SOLID) Miller Grey

    • (SOLID) #3000 Grey

    • (SOLID) Seawolf

    • (SOLID) UCLA Grey

    • (SOLID) Silent Grey

    • (SOLID) Polaris Grey

    • (SOLID) Cashew

    • (SOLID) Palm Green

    • (SOLID) Rustic Brown

    • (SOLID) Tower Brown

    • (SOLID) Charcoal

    • (SOLID) Classic Bronze

    • (SOLID) Black

    • (METALLIC) Silver Blade

    • (METALLIC) Natural Silver

    • (METALLIC) Crystal Silver

    • (METALLIC) Bright Silver

    • (METALLIC) Brilliant Silver

    • (METALLIC) Silver Chain

    • (METALLIC) M,Steel Grey

    • (METALLIC) Titan Silver

    • (METALLIC) Metro Bronze

    • (METALLIC) M,Nightfall

    • (METALLIC) Metallic Charcoal

    • (METALLIC) Sage

    Subsidiary materials


    Simulated Divided lite

    Three different shapes of SDL options available to meet the desgin intent of Architect






    Screen

    Sliding



    RESOURCES

    Download All You can download the product information at once.
    Drawing

    CAD File.

    PDF File.

    KOR
    Print

    The print function can selectively print only the desired section

    Check it out in detail using magnifying function
