Largest swing door solution for archtectural design flexibility

  • | Industry leading design with Single door panel sizes up to 5’ wide, 11’ tall; Double door sizes up to 10' wide by 11' tall
  • | Unique thermally broken low profile sill
  • | Cutting-edge design with concealed hinges and hardware provides a true modern or contemporary look
  • U-value
    0.29 (Cardinal E366/i89 6mm)
    Max. panel size (W x H)
    60” x 132”
    Min. panel size (W x H)
    32” x 72”
    Max. weight
    400 lb
    Max. glass thickness
    1.73”
    Configurations
    X, OX, XX, OXXO, etc

CONFIGURATIONS

  • XO
  • OX
  • XOOX
  • XX
  • OXO
  • XOO
  • OOX
  • OXXO
  • XXX
  • XOX
  • XXO
  • XXXX

    Performance

    The technology that enables warmer and safer home with a single panelUnparalled thermal performance and maximized ease of operation
    Innovative technology in our new concealed hinges and locking system also allows for easy operation
    Advanced hinge, hardware and weather-strip system is designed to perform under extreme weather conditions.

    Design

    Our redesinged EDS95 Patio Door allows us to build the largest single and double panel swing doors in the market
    Our redesinged EDS95 Patio Door allows us to build the largest single and double panel swing doors in the market
    Unmatched single entry door sizes that can reach up up to 5' x 11' with double door entry systems up to 10' x 11'. Industry leading large door sizes allow greater architectural design flexiblity

    OPTIONS

    Hardware
    HANDLE

    FSB Handle
    Material : Aluminium


     Black : Blasted dark bronze anodised (C34)
     White : White, approximating to RAL 9016
     Silver : Champagne silver color



    Material : Stainless Steel
     FSB_Handle_Stainless Steel_Polished
     FSB_Handle_Stainless Steel_Satin





    Padlocks
    NEW RANGE OF ISEO PADLOCKS. STYLISH ON THE OUTSIDE, TOUGH ON THE INSIDE.
    Take quality with you wherever you go by choosing an Iseo padlock: with a range including small shackle padlocks, armoured
    padlocks, combination padlocks and corrosion resistant padlocks.



    COMPACT, SECURE, STRONG


    A tradition of manufacturing excellence honed continuously over the years, to also bring class-beating Iseo quality and performance to this market segment, proving that innovation is still possible even with the most conventional traditional product.

    Every one of our products is conceived to combine superior performance with impeccable design.

    An extremely large number of different internal cylinder combinations ensures absolute security, while the metals and alloys used are all of the highest quality. All of our padlocks are manufactured with premium quality materials and with extremely precise combination mechanisms.

    This allows to offer a personalised service for any situation with specific needs.

    The new padlocks by ISEO are conceived and built to offer outstanding reliability and durability, and are available in a comprehensive range with a wide choice of products.

    ISEO padlocks cater for in all situations where it is necessary to prevent unauthorised access to private areas and reduce the risk of theft of personal property. These padlocks offer the ideal solution for locking gates and lockers, securing shutters and locking cycle chains.




    G-U. B 1314 narrow stile lock


    For locks of the type: Mortise locks

    Number of door leafs: Single-leaf

    For elements of: Aluminium doors / Narrow stile doors

    Function: Standard function

    Application: Standardtüren

    Centre lock: Manual locking

    Opening from the outside: Keys and handles



    DOOR CLOSER

    Boxer | GEZE

    Integrated door closer for single leaf doors with a leaf width of up to 1400 mm


    Closing force with variable adjustment of EN2-4 or EN3-6

    Can be used for right and left hand doors without conversion

    Door closer is embedded in the door leaf and frame and fulfils the highest design demands

    Integrated back check, slows down doors that are thrown open forcefully

    Hydraulic latching action which accelerates the door shortly before it is closed

    Closing speed can be individually adjusted

    All functions can be adjusted in the installed state



    Multi point lock : GU-SECURY SH2 - GU Group


    There are three respectively five locking points to provide for a securely locked door

    Thanks to hardened steel inserts, all hook bolts are proof against being sawn through in accordance with the SKG directives

    Levering the door out is efficiently hampered through the bolts' hooking into the strikers

    Tested for Resistance Class RC 2 or RC 3 with several door systems

    For 1-leaf or 2-leaf door systems

    For locks of the type: Multi-point locks

    Number of door leafs: Single-leaf, Double-leaf

    For elements of: Timber / steel doors, Aluminium doors / Narrow stile doors, PVC doors

    Function: Standard function

    Application: Fire and smoke protection doors

    Centre lock: Manual locking

    Opening from the outside: Key




    Dr.Hahn Concealed hinge



    VL-BAND 180°

    CONCEALED HINGE AS AN ARCHITECTS' SOLUTION

    Ap­plic­a­ble for both in­ward and out­ward open­ing pro­file Systems

    With an opened door the pas­sage­way is main­tained 100%

    DIN cer­ti­fied left / DIN cer­ti­fied right

    Hinges are pre-mounted as far as pos­si­ble



    Dr.Hahn Barrel hinge


    ROLLENBAND AT

    FOR USE ON HIGH-QUALITY ALUMIUM DOORS

    CE-certified according to EN 1935:2002, hinge class 14

    Snug fit of all bear­ing and guide el­e­ments (check now!)

    Same ap­pear­ance re­tained after ad­just­ment

    Di­am­e­ter of 20 mm

    One-piece bearing pin made of stainless steel




    Color

    • (SOLID) Super White

    • (SOLID) Bone White

    • (SOLID) Atrium White

    • (SOLID) Classic White

    • (SOLID) Eagon White

    • (SOLID) Light Grey

    • (SOLID) Miller Grey

    • (SOLID) #3000 Grey

    • (SOLID) Seawolf

    • (SOLID) UCLA Grey

    • (SOLID) Silent Grey

    • (SOLID) Polaris Grey

    • (SOLID) Cashew

    • (SOLID) Palm Green

    • (SOLID) Rustic Brown

    • (SOLID) Tower Brown

    • (SOLID) Charcoal

    • (SOLID) Classic Bronze

    • (SOLID) Black

    • (METALLIC) Silver Blade

    • (METALLIC) Natural Silver

    • (METALLIC) Crystal Silver

    • (METALLIC) Bright Silver

    • (METALLIC) Brilliant Silver

    • (METALLIC) Silver Chain

    • (METALLIC) M,Steel Grey

    • (METALLIC) Titan Silver

    • (METALLIC) Metro Bronze

    • (METALLIC) M,Nightfall

    • (METALLIC) Metallic Charcoal

    • (METALLIC) Sage

    Subsidiary materials


    Simulated Divided lite

    Three different shapes of SDL options available to meet the desgin intent of Architect






    Screen

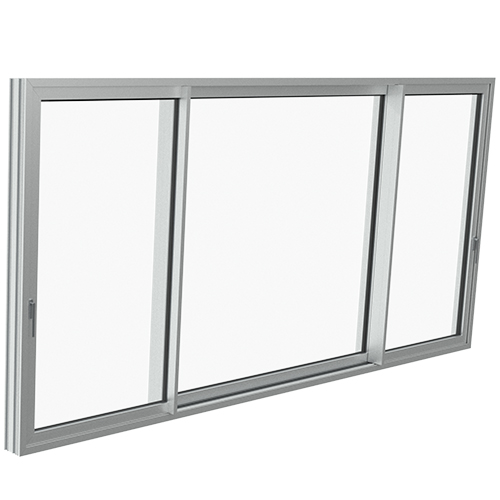

    Sliding
